Adam Audio T7V Two-Way Studio Monitor

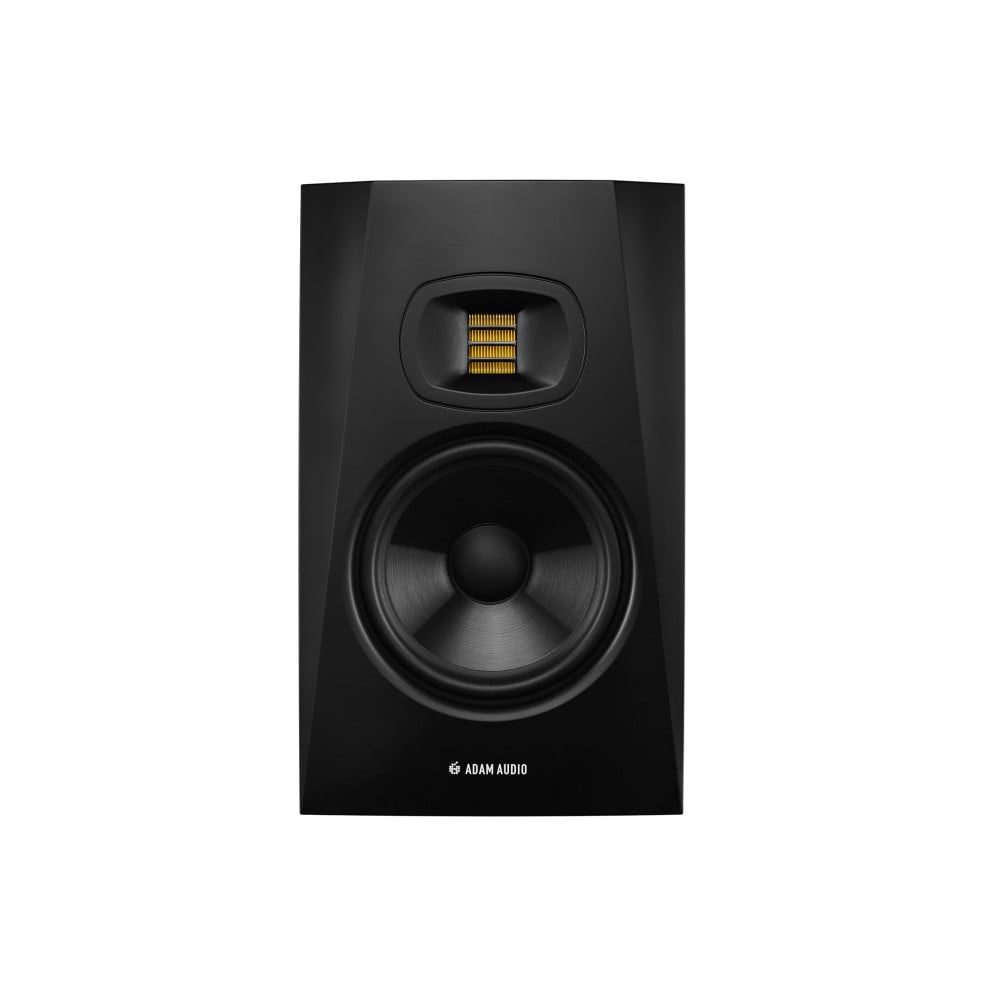

The T7V is a two-way studio monitor designed for vertical use in a nearfield application.The T7V features a 7 woofer that provides bass extension down to 39 Hz, while the U-ART tweeters diaphragm provides pristine and extended high-frequency response up to 25 kHz virtually unheard of in monitors in this price range. The U-ART tweeter is fitted to a precision waveguide with the same dispersion-control attributes as the High Frequency Propagation (HPS) waveguide used in ADAM Audios flagship S Series studio monitors. The waveguides highly uniform dispersion of high frequencies provides an incredibly wide sweet spot that frees you from being glued to a rigid mix position while working.

On the rear side of the T7V’s beveled cabinet, a rear-firing bass reflex port joins a sturdy metal backplate that’s home to the analog input connections. The U-ART tweeter is powered by a 20 W Class-D amp, while a 50 W Class-D amp serves the woofer. These new powerhouses yield an impressive maximum of 110 dB SPL per pair.The wide frequency response, high dynamic range, excellent transient response, wide sweet spot and small footprints make the T7V perfectly suited for use in small control rooms for music production, video post-production and broadcast production – a great fit for the modest budgets that many facilities need to work with.The ADAM Audio T10S subwoofer is the perfect match to complement the T7V to extend the capabilities of monitoring in the bottom end.U-ART 1.9” Accelerated Ribbon Tweeter with HPS WaveguidePolypropylene 7” woofer and rear-firing bass-reflex portCumulated Amp. Power RMS: 70 WFrequency Response: 39 Hz – 25 kHzMax. SPL Per Pair at 1 m: ≥110 dBFEATURES & BENEFITSPRODUCT FEATUREBENEFIT TO THE CUSTOMERU-ART 1.9” Accelerated Ribbon TweeterAllows longer operation with fewer signs of fatigueTheir breakup is prevented by the folded diaphragms, distortions are effectively reduced to a minimumAdvanced dynamic range due to acoustically effective diaphragm surface that is 2.5 times bigger (compared to a classic tweeter according to the piston principle)The air velocity ratio of 4:1 during the sound generation by folded U-ART membraneDirect, fast response in the high-range even with complex transientsHPS waveguide from the S SeriesMakes dispersion more consistent and imaging more stable over a wider areaReduction of early reflections on the surfaces of, e.g. mixing consoles, desks, etc.Lightweight polypropylene construction of the wooferExcellent transient response even at high sound levels without breakup of the diaphragmVertical 2-way system with 7” wooferHigh resolution of the stereo imageSpacious rear-firing bass reflex portBass reproduction with very low compressionLinear frequency response of 39 Hz to 25 kHzUnbiased reproduction in a wide frequency bandMaximum peak sound pressure per pair in 1 m ≥ 110 dBPowerful, compression-free sound reproduction even at very high sound levelsDSP-powered crossover designSmooth frequency response without interferences between the drivers in the critical mid-rangeSimple room acoustic adjustments via high- and low-shelf filtersAllows optimal adaptation to acoustically difficult listening environments or individual preferencesAnalog inputs over XLR and RCAOptimized for balanced and unbalanced line signalsAcoustically optimized cabinet geometryReduction of unwanted reflections on the cabinetsCompact cabinet dimensionsFits every desktop2 years warranty with optional extension to 3 years with the registration of the product
