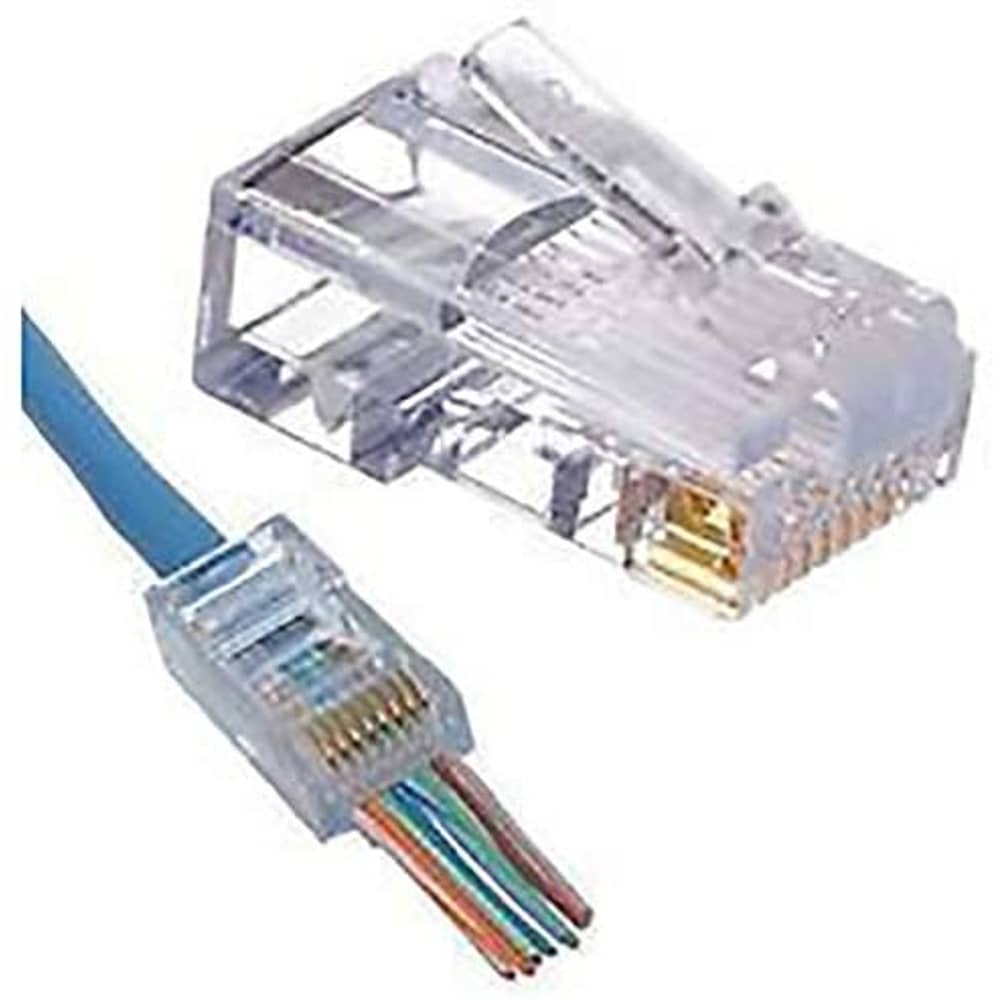

Ez-rj45 Modular Rj45 Connectors – 100 Pack

Brand - EZ-RJ45Networking kitNetworking tool

APPLICATION The EZ RJ45 CAT5e Plug and Crimp fool provides quick, cost-effective UTP wire terminations. The plug features openings that allow wires to be inserted and extended out of the front, providing increased performance,wire sequence verification, and no wasted connectors, crimps, or bad crimp. The EZ45 tool features a built-in cutter and stripper that crimps and cuts wires in one operation. It accommodates EZ-Rj45 plugs, and most standard RJ-45 This craft-friendly tool features precision ground-crimp dies, a full-cycle ratcheting mechanism, and steel construction for strength and durability FEATURES Clear housing for wire sequence verification Thru holes allow wire pairs to be inserted thru front of connector for faster terminations. DESIGN CONSIDERATIONS 8-conductor modular plug Max Cable OD: 6.60mm (0.260″) Max Insulated wire OD: 1.041mm (0.041″) Insert/extraction life: 1000 cycles RoHS compliant Terminates both solid and stranded cable Materials: Polycarbonate body Phosphor bronze contacts The EZ RJ45 crimping system comprises connectors and tools to make crimping easy. The EZ RJ45 connectors have holes at the end that the inner cores of your CAT5e or CAT6 cable pass right though, This means that the cable colours can be checked to ensure that they are in the correct order before the connector is crimped. This results in faster terminations, more reliable connections and less waste,To prepare the CAT5 or CAT6 cable, strip the outer cover from the cable then separate the inner cores and smooth them straight using the blade of a screwdriver or similar. Sort the inner cores into the correct order according to the cable convention you wish to follow
