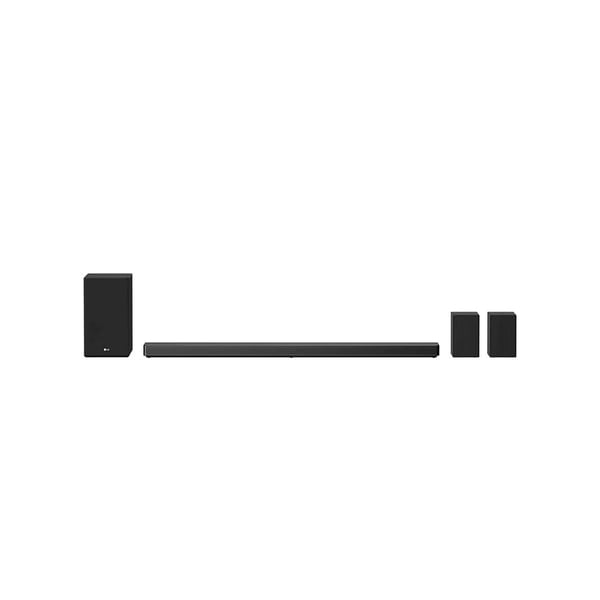

LG DolbyAtmos DTSX Sound Bar SN11R

LG SN11R 770W 7.1.4ch Hi-Res Dolby Atmos Sound Bar with Meridian Technology

SIZE(W X H X D, MM) Main (w/ Foot ) 1443 x 63 x 146Matching TV size (`20 New) 55 ~ 65 inch Addtional Foot (H) mm NoWireless Box No Rear Speaker 130 x 211.5 x 191.2Subwoofer 221.0 x 390.0 x 312.8 MATERIAL Main – Front / Top / Bottom Metal Grille/Mold/MoldWireless Box – Front / Body No / No Wireless Speaker – Front / Body Metal (+Top) / MoldSubwoofer – Front / Body Jersey / Wood WEIGHT(KG) Main 7.2KgWireless Box No Rear Speaker (2EA) 5.2KgSubwoofer 7.8Kg Gross Weight 25.3Kg CARTON BOX Size (W x H x D) mm 1516 x 284 x 472Type TipOn Color White(1)+Yellow NUMBER OF CHANNELS Number of channels 7.1.4ch NO. OF SPEAKER UNIT Number of speakers 15EA CONNECTIVITY_GENERAL Audio Input (3.5Ø) NoOptical Yes(1) HDMI 1.4 (HDCP 1.4) – In / Out No / NoHDMI 2.1 (HDCP 2.3) – In / Out YES(2) / YES(1) HDR10 / HDR10+ Yes / NoDolby Vision YES (TBD) USB YesFM Radio No CONNECTIVITY_WIRELESS Bluetooth Version 5.0Bluetooth Codec – SBC / AAC Yes / No Wi-Fi (2.4G / 5G) YesWireless Rear ready Yes (1:1) DISPLAY INFORMATION Display Type LCD (5 char.)LED Indicator Color No AI Indicatior No HI-RESOLUTION AUDIO Sampling – “24bit/192kHz” / “24bit/96kHz” Yes / YesUpbit/upsampling – “24bit/192kHz” / “24bit/96kHz” Yes / No SOUND EFFECT AI Sound Pro YesStandard Yes (w/ Meridian) Music YesBass Blast / Bass Blast + Yes Movie (Dolby Surround) YesDolby ATMOS Yes DTS:X YesDTS Virtual:X No SOUND CONTROL User EQ – RCU / App Yes / YesNight Time On/Off – RCU / App No / Yes Dynamic Rage On/Off – RCU / App No / YesAuto Volume Leveler On/Off – RCU / App No / Yes Auto Sound Engine (Default) NoSFX (Default) No AI Room Calibration (2 MIC In) – App Yes FM RADIO SUPPORTED Type NoFM / RDS No Frequency Range NoStation Preset No Preset Memory / Erase NoInformation Display (RDS – PTY, PS, CT, RT) No GOOGLE SUPPORTED Google Assistant Built In (Controller, 2 MIC In) NoWorks with the Google Assistant (Controllee) Yes Chromecast YesGoogle Multi Zone (One Source → Multi Speaker) Yes Google Fast Pairing No CONVENIENCE Remote App – iOS / Adroid OS Yes / YesSmart Phone File Playback Yes EZ setup (BLE) YesNSU / FOTA Yes / No Control with your TV Remote (Vol+/-, Mute) YesSound Sync – Bluetooth(LG TV) / Optical No / Yes Auto Power On/Off – Bluetooth (LGTV) / Optical No / YesA/V Sunc (0~300ms) – RCU / APP No / Yes HDMI SIMPLINK YesHDMI Audio Return Channel (ARC) Yes HDMI Audio Return Channel (e-ARC) YesWoofer Level (-15 ~ 6dB, 1dB/Step) Yes Channel Level (-6 ~ 6dB, 1dB/Step) – Top / Center / Surround / Rear / Rear Top Yes / Yes / Yes / Yes / YesMute Yes Auto Dimmer YesSleep Timer – RCU / App No / Yes USB Host / Charge Yes / NoBuilt-in Music Yes (2) Bluetooth Stand-By NoAuto Detect (Bluetooth) Yes AUDIO FORMAT(BITSTREAM) LPCM YesDolby Atmos Yes Dolby TrueHD YesDolby Digital Plus Yes Dolby Digital YesDTS:X Yes DTS-HD Master Audio YesDTS-HD High Resolution Yes DTS Digital Surround YesAAC / AAC+ Yes FILE FORMAT FLAC – C4A / USB Yes / YesOGG – C4A / USB Yes / Yes WAV – C4A / USB Yes / YesMP3 – C4A / USB Yes / Yes WMA – C4A / USB No / NoAAC – C4A / USB Yes / Yes POWER_MAIN SMPS 100~240V, 50/60HzPower Off Consumption 0.5W ↓ Power Consumption 75W POWER_REAR SPEAKER/WIRELESS BOX Type (SMPS) 100~240V, 50/60HzPower Off Consumption 0.5W ↓ Power Consumption 20W (L, R)Wireless Frequency 5GHz POWER_SUBWOOFER Type (SMPS) 100~240V, 50/60HzPower Off Consumption 0.5W ↓ Power Consumption 38WWireless Frequency 5GHz ACCESSORY_MANUAL Web Manual (File) Yes (Full)Built-in Manual (Book) (Simple or Full) Yes (Simple) Wall Mount Guide YesWireless Speaker Reset Guide Yes Open Source – Yes (Full or Simple) / X Yes (Full)Warranty Card Yes ACCESSORY_REMOTE CONTROL Model Name MA7 (`19 Modify)Battery(Size) AAA x 2 Battery Built-in Yes ACCESSORY_OTHERS Rear Speaker Cable NoOptical Cable Yes Wall Mount Bracket YesCable Management (Tie) No Additioanl Foot NoFM Antenna No
