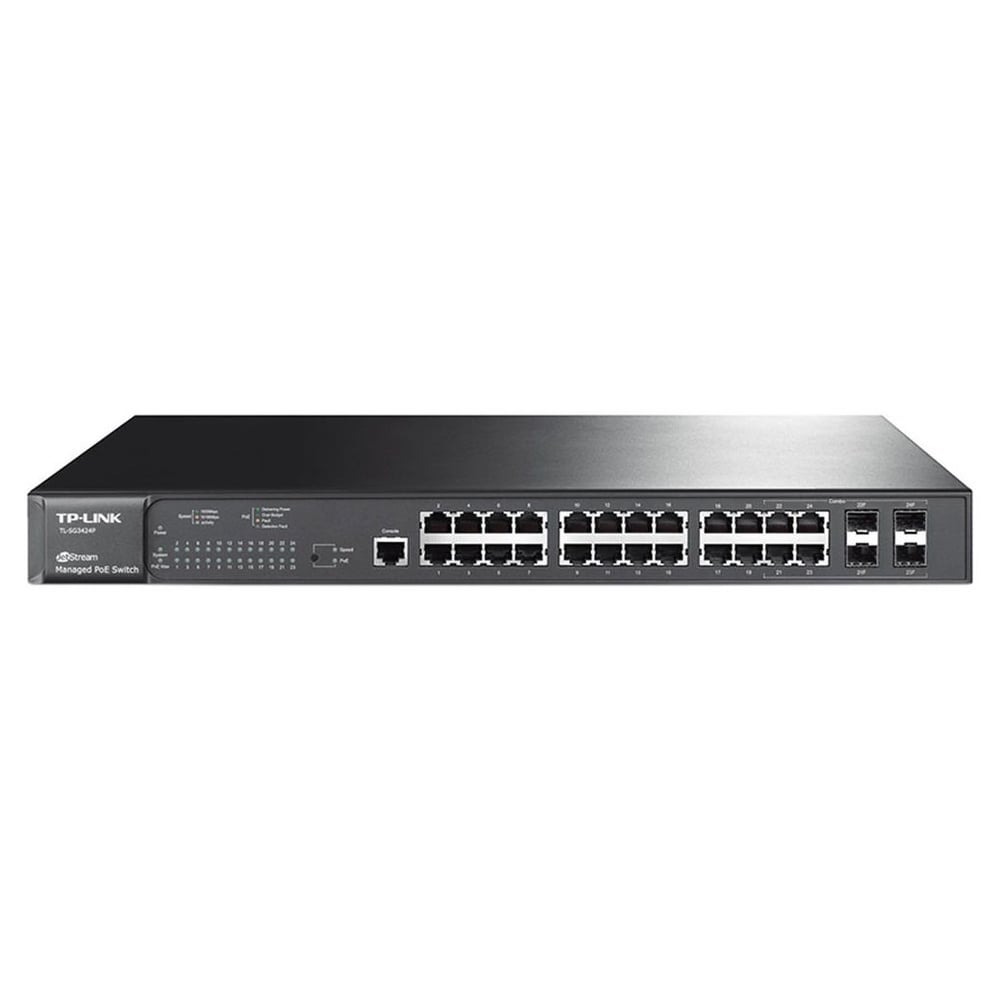

TPLink JetStream 24-Port Gigabit L2 Managed PoE+L2 ManagedSwitch With 4 Combo SFP Slots (TL-SG3424P)
Item 1079527
Out of Stock
Out of Stock
Secure Transaction
Key Information
- Type: Switch
Details
TPLink JetStream 24-Port Gigabit L2 Managed PoE+L2 ManagedSwitch With 4 Combo SFP Slots (TL-SG3424P)
The TL-SG3424P provides 24 10/100/1000Mbps ports that supports 802.3at/af-compliant PoE , with a total PoE power supply up to 320W, powerful and flexible enough for users to deploy wireless access points or IP-based network surveillance cameras. The switch also comes equipped with 4 combo SFP slots, expanding your network flexibly. In addition, it provides high performance, enterprise-level QoS, advanced security strategies and rich layer 2 management features. With all these advanced features, the JetStream Gigabit L2 Managed PoE Switch is an ideal choice for small and medium business networking.
TL-SG3424P has robust security and management features. The IP-MAC-Port-VID Binding and Access Control List (ACL) functions protect against broadcast storm, ARP and Denial-of-Service (DoS) attacks, etc. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. Anymore, the easy-to-use web management interfaces, along with CLI, SNMP and RMON, mean faster setup and configuration with less downtime. For workgroup and departments requiring cost-sensitive Layer 2 Switch and gigabit capability, TP-LINK JetStream Gigabit L2 Managed PoE SwitchTL-SG3424P provides you the ideal access-edge solution.
Features
Supports 24 802.3at/af-compliant POE+ ports with a total power supply of 320W.
IP-MAC-Port-VID Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X Authentication, and Radius provide you robust security strategies.
L2/L3/L4 QoS and IGMP snooping optimize voice and video application
WEB/CLI managed modes, SNMP, RMON bring abundant management features.
Product Specifications
- MainBrandTPLinkModel NumberTL-SG3424P
- GeneralTypeSwitchCompatible ProductsCompatible with public MIBs and TP-LINK private MIBsWhat's in the BoxSwitch, Power Cord, Quick Installation Guide, Resource CD, Rackmount Kit, Rubber Feet
- FeaturesFeatures
Support 802.1p CoS/DSCP priority
Queue scheduling: SP, WRR, SP+WRR
Voice VLAN
Supports up to 4K VLANs simultaneously
Dual IPv4/IPv6 stack
Multicast Listener Discovery (MLD) Snooping
Web-based GUI and CLI management
Port Mirroring
Additional FeaturesBandwidth/Backplane : 48Gbps
Packet Forwarding Rate: 35.7Mpps
MAC Address Table : 8k
Jumbo Frame : 10240 Bytes
StandardsIEEE 802.3i,IEEE 802.3u,IEEE 802.3ab,IEEE802.3z,IEEE 802.3ad, IEEE 802.3x,IEEE 802.1d,IEEE 802.1s,IEEE 802.1w,IEEE 802.1q, IEEE 802.1x,IEEE 802.1p,IEEE 802.3at,IEEE 802.3afMax Transfer Rate48 Gbps - ConnectivityInterfaces
24 10/100/1000Mbps RJ45 Ports ((Auto Negotiation/Auto MDI/MDIX))
4 Combo 100/1000Mbps SFP Slots
1 Console Port
OtherPoE+ Ports: 24 Ports - Power & BatteryPower Supply100~240V AC, 50/60HzPower ConsumptionMaximum (PoE on): 358.2W (220V/50Hz)Power Consumption (Standby)Maximum (PoE off): 38.2W (220V/50Hz)TemperatureOperating Temperature: 0℃~40℃HumidityOperating Humidity: 10%~90%
- PhysicalCertificationsFCC, RoHSDimensions440 x 330 x 44 mm
- RequirementsRequired Operating SystemMicrosoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7, MAC® OS, NetWare®, UNIX® or Linux.
