Key Information
- Resolution: 3.5 inch wide color LCD
- Color: White/Black
Details

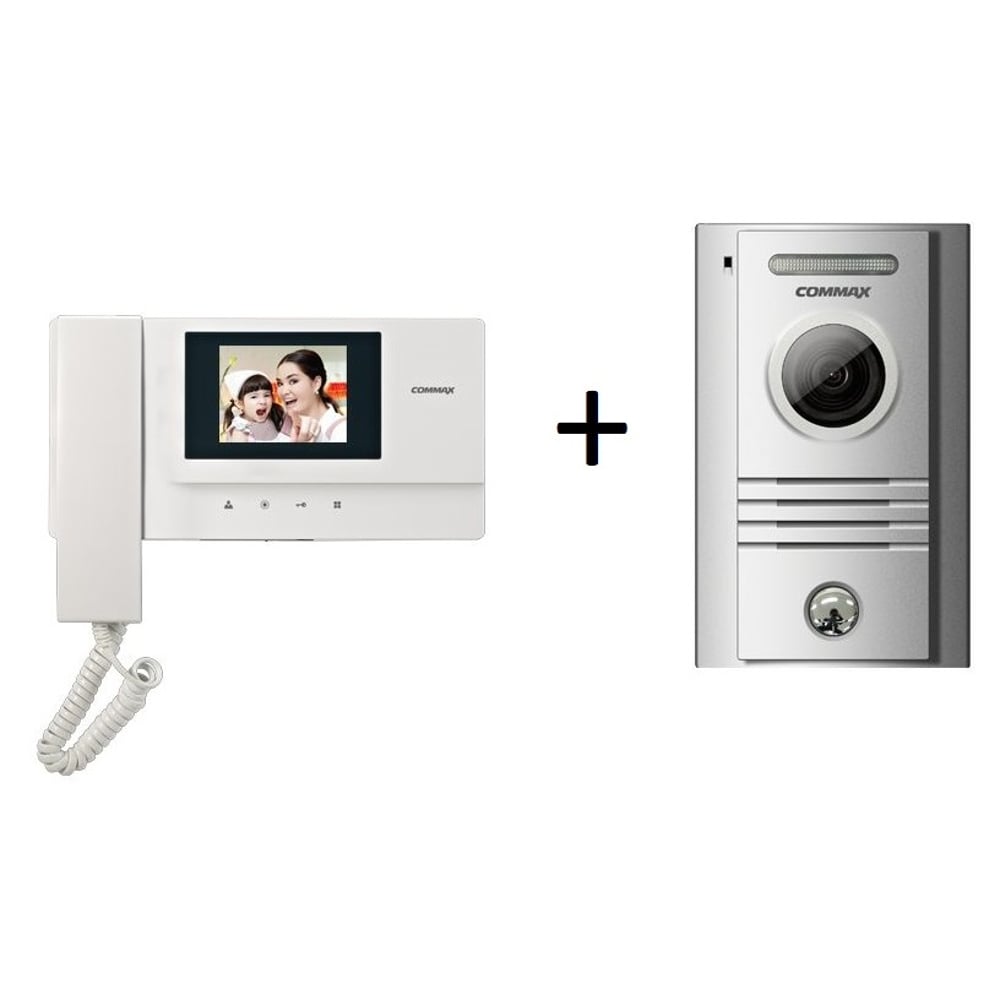

VIDEOPHONE SERIESCOMMAX VIDEOPHONE provides vivid video quality through theCOMMAX’s independent ‘FINE VIEW’ technology.
TOUCH BUTTON
A gleaming touch button creates an emotional space.
VIVID DISPLAY AND
It leads the world color video phone markets providing undistorted clear view and outstanding quality.
LED BACKLIGHT
Provide vivid pictures by utilizing LED backlight.
Monitor Specifications:
- Power source: AC 100-240V, 50/60Hz
- LCD size: 3.5 inch wide color LCD
- Mount type: Surface-mounted type
- Operating temp.: 0℃~40℃

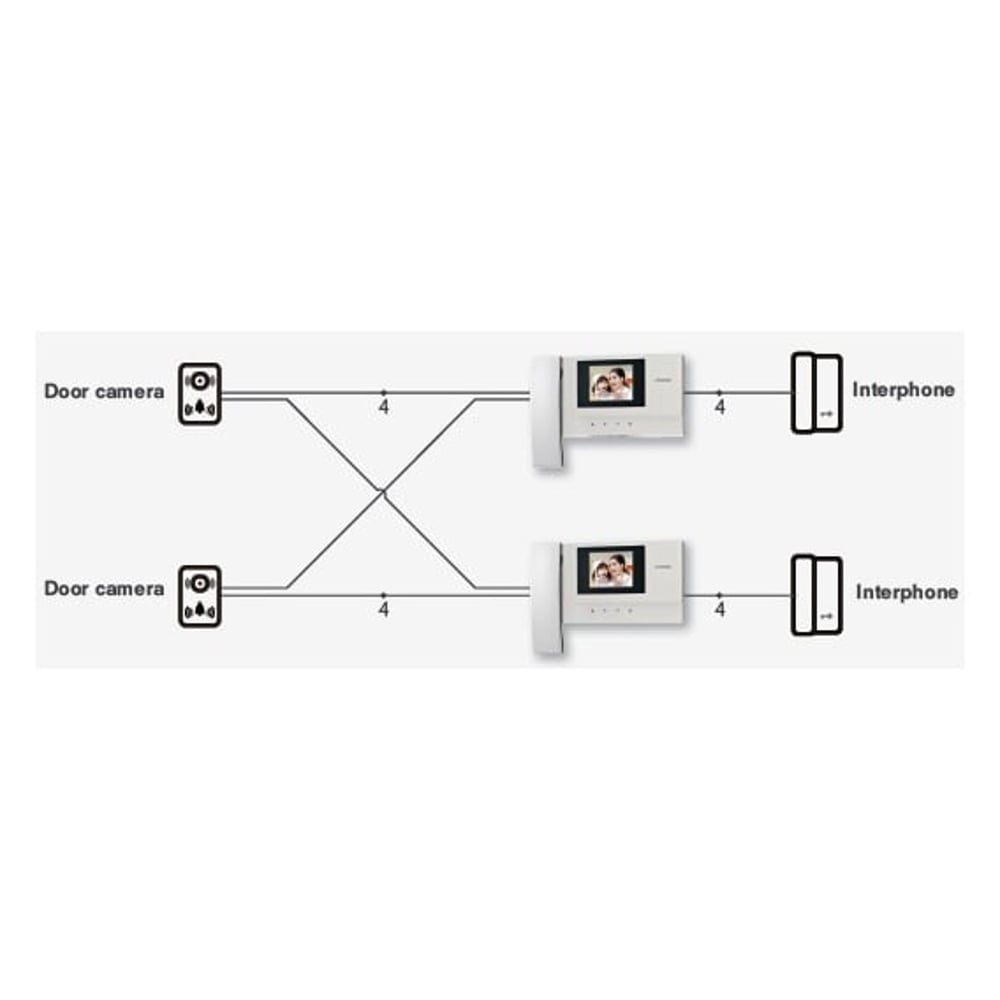

- Wiring: Door camera: 4 wires(Polarity) Interphone: 4 wires(Polarity)
- Distance: Door camera: 50m(0.65Ø) Interphone: 20m(0.65Ø)
- Consumption: Max.10W/standby 3.4W
- Dimension(mm): 240(W)×121(H)×27(D)
Door Camera Features:
- Illuminance sensor
- Out door model
- Wall-mounted type
- House call and talk
- Built-in white LED
Door Camera Specifications:
- Power source: 12V(From monitor)
- Operation Temp.: -40℃~+40℃
- Wiring: 4 wires
- Camera view angle: Horizontal 75°/ Vertical 55°
- Distance: 50m (Ø0.65)
- Dimension(mm): 96(W)×155(H)×32(D)
