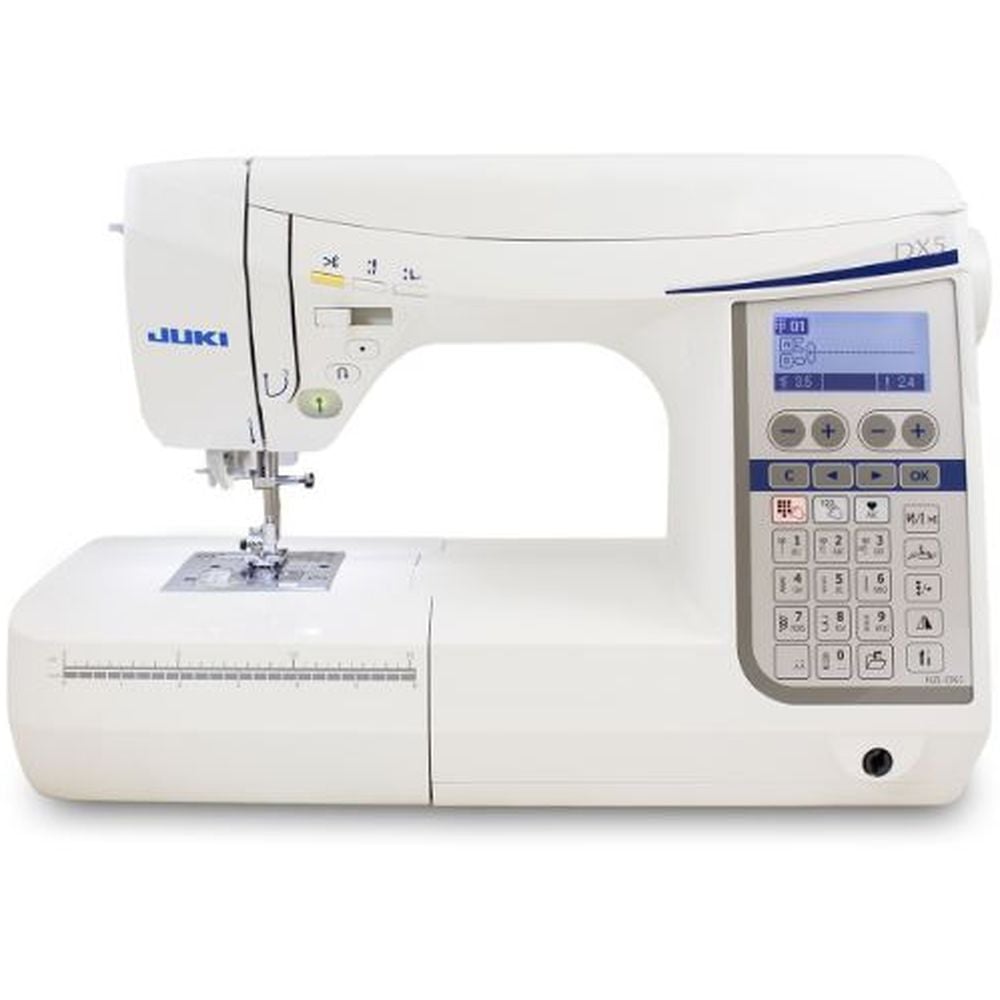

Juki Sewing Machine HZL-DX5

Sewing Machines that meet your needs to achieve perfection. Enjoy the satisfaction of creating your own design while using high quality finishes. Get the most out of your sewing experience with the New JUKI HZL-DX series and turn your creations into masterpieces.

FEATURES
Box Feed – JUKI Industrial Sewing Machine Technology
The JUKI industrial “BOX Feed” system has been brought to the home sewing machine. Our BOX Feed allows you to create perfect high-quality stitches on all types of fabrics.

Straight Stitch Slide Plate
Simply slide the front lever to switch to a single needle hole! Sew the lightest fabrics with perfect needle permeation. The single needle plate will not allow fabrics to be pushed into the needle hole. Free motion stitch with precision and perfection. Sew with confidence, when the single needle hole plate is set, only the straight stitch patterns can be selected.

Float Function Prevents Uneven Seams
By pressing the float button, you can sew with the presser foot slightly raised. By raising the presser foot to float you can sew fabrics without pushing layers or creating uneven seams. The height of the presser foot can be set in increments of 0.1mm, allowing delicate adjustment according to the materials.

Easily Create and Enjoy Beautiful Buttonholes with JUKI’s Combination of industrial Background and Modern Technology
Use the buttonhole sensor system for optimal feed on all types od fabric. You will love the one step buttonhole as it measures and evenly sews on both the right and left sides. Automatically works in optimum order for a perfectly finished buttonhole.
Customize Your Machine with even more New Functions!
Create and Design with Precision and Perfection
Quick Preparation Makes Sewing a Breeze
Enjoy the Freedom to Create and Design with Ease and Satisfaction

SPEC / ACCESSORIES
Control system(Arm size) Computer (Arm Size 203mm)
Dimensions 445(W) x 291(H) x 210(D)mm
Weight 10.3kg(21.6lbs)
Maximum sewing speed 1,050 sti/min
Number of stitch patterns 185 and Alphabetic/numeric fonts:3
Buttonhole Automatic (sensor system) with clamping plate Cutting width adjustment Buttonhole Length: 0.7 – 3.2cm
Direct stitch pattern selection ✓
Start/stop button Green: Ready to start and/or while sewing Red: Not ready to start Orange: When the lock stitch button is pressed while the sewing machine is engaged in pattern sewing
Adjustable starting / reverse stitch speed ✓
Auto thread trimming ✓
Thread cutter ✓
Automatic needle threader One hand
Thread tension system Automatic
Needle up/down button ✓
Low-speed inching sewing ✓ Press needle up/down button continuously
Needle stop position Down
Needle stop position switching ✓
Lock stitch Reverse stitch (Button system) Reinforcement stitch (Button system) Automatic lock stitch, thread trimming and presser foot lifting
Feed mechanism 7 point feed dog BOX Feed
JUKI Smart Feed (dual feed function) –
Presser foot pressure adjustment Stepless adjustment
Micro-lifter With presser foot pressure adjustment (Float function)
Function to straight-line stitching Straight stitch slide plate
Presser foot pivot function ✓
Presser foot lift (1 step/2 steps) Button system: 6mm Lever system: 6mm / 12mm
Horizontal presser foot holder button ✓
Drop feed ✓

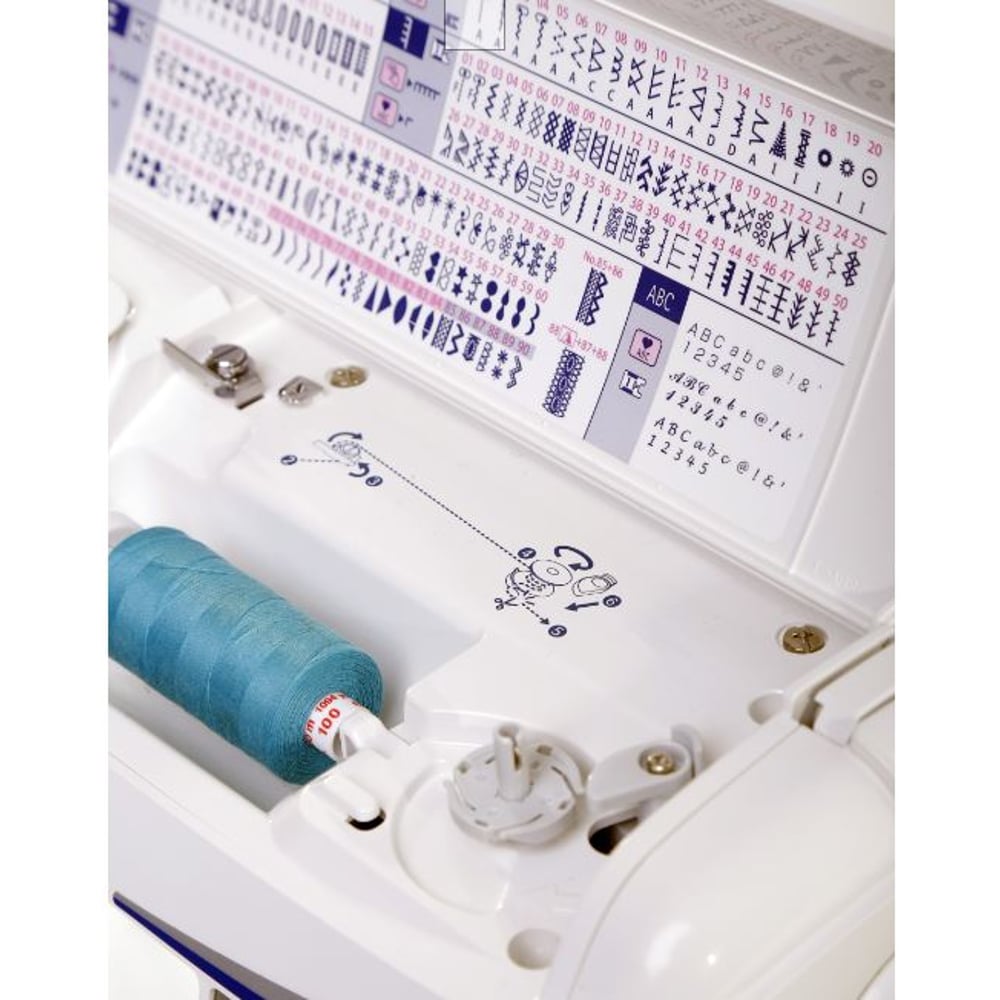

Quick bobbin preparation ✓
Easy bobbin winding (Bobbin winder with independent motor) ✓
Bobbin thread detection –
Stitch length Button system / LCD numerical display Max. 5mm
Stitch width Button system / LCD numerical display Max. 7mm
Number of needle position (straight stitch/other than straight stitch) 37 / –
Pattern reverse left/right
Twin needle sewing ✓
Lock mode –
Elongation ✓
Save/call of patterns 10 patterns
Light 1 LED light
Type of hook Horizontal hook
Free arm ✓
Cord reel –
Knee lifting lever ✓
Foot controller with foot switch (6 functions selectable)
Wide table Option

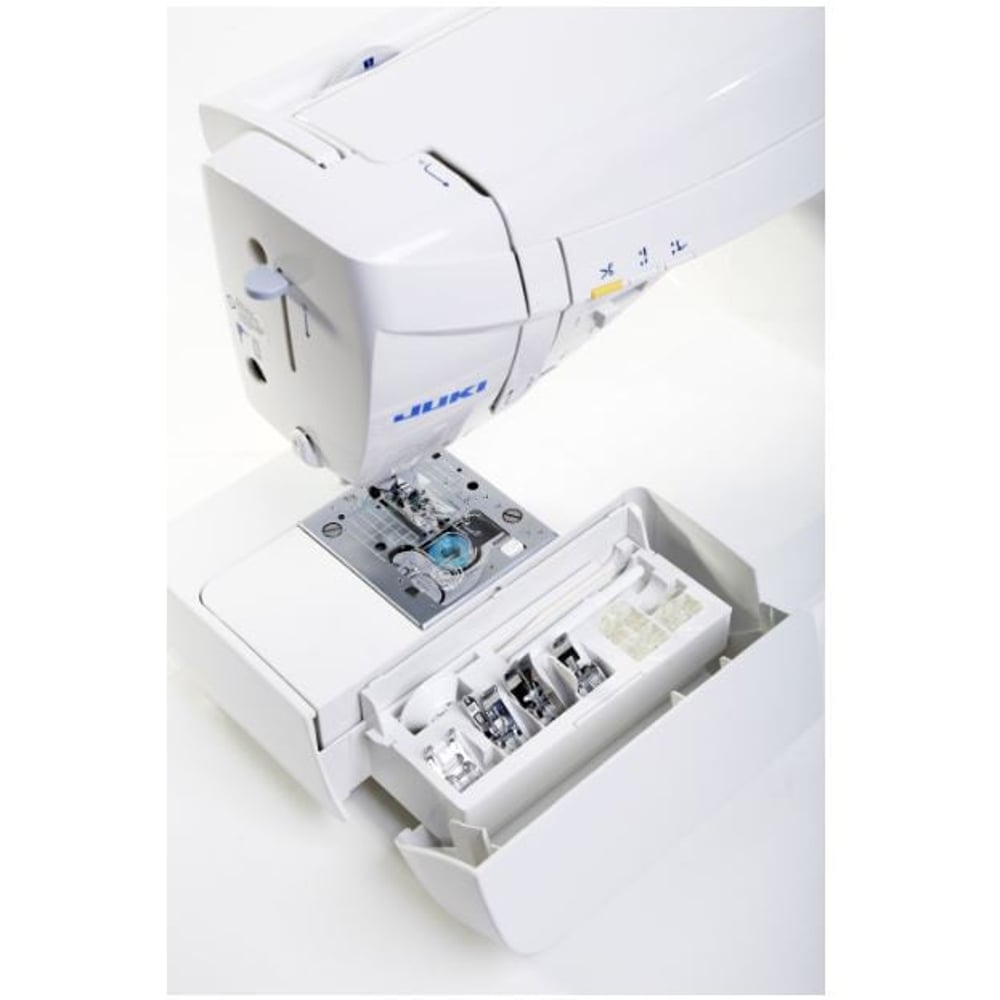

Accessory storage Auxiliary bed/ accessories bag
Sewing machine cover Hard case with accessory storage part
Operation support DVD Operation guide
Supported languages 8 languages
English / Spanish / Italian / French / Dutch / German / Russian / Japanese
Accessories (presser feet) Standard presser foot (A) Zipper presser foot (B) Overcasting presser foot (C) Blind stitch presser foot (D) Buttonhole presser foot (E) Manual buttonhole presser foot (I) Walking foot (N) Patchwork presser foot (P) Quilt presser foot (Q)
Other accessories_1 Bobbin (4) Needle set HA X 1 #11(1):#14(1):#16(1):for knit #11(1) Twin needle Quilt guide Auxiliary spool pin T-shape screwdriver Ripper Cleaning brush Spool cap (large) Spool cap (middle) Spool cap (small) Foot controller Knee-lifting lever Power cord Hard case Instruction manual Operation support DVD

INCLUDED ACCESSORIES
Standard Presser Foot
Overcasting Presser Foot (Overedge Foot)
Buttonhole Presser Foot
Decorate Stitch Presser Foot (Manual BH Presser Foot/Satin Stitch Foot)
Zipper Presser Foot
Blind Stitch Presser Foot (Blind Hem Foot)
Walking Foot
Patchwork Presser Foot
Quilt Presser Foot
Quilt Guide
Twin Needle
Auxiliary Spool Pin (Additional Spool Pin)
Foot Controller with Foot Switch Function
Knee-lifting Lever
Bobbin(1pc)

OPTIONAL ACCESSORIES
Button Attaching Presser Foot
Adjustable Zipper Foot
Narrow Zipper Foot
Invisible Zipper Foot
Smooth Presser Foot
Roller Foot
Rolled Hemming Presser Foot
Hemming Presser Foot for Zigzag
Binder Presser Foot
Pintuck Foot Narrow
Pintuck Foot Wide
1/4“ Guide Foot
Presser Foot with Guide
Edge Sewing Presser Foot
Compact Guide Edge Sewing Foot
Quilt Presser Foot (for Ruler)
Quilt Presser Foot (Open Type)
Quilt Presser Foot (Zigzag Type)
Open Toe Presser Foot
Applique Presser Foot
Pearl Attaching Presser Foot
Fringe Foot
Cording and Embroidery Presser Foot
Cording Presser Foot (for 3 Cords)
7 Hole Cording Foot
Gathering Foot
Dedicated Hook for Thick Thread Decoration
Stitch Area Magnifier
Thread Stand
Magnetic Gauge
Ruler Kit (HZL type)
Wide Table
Foot Switch Stopper
Advanced Quilter’s Kit
Heavy User Kit
Creative Set
